Installation Aid

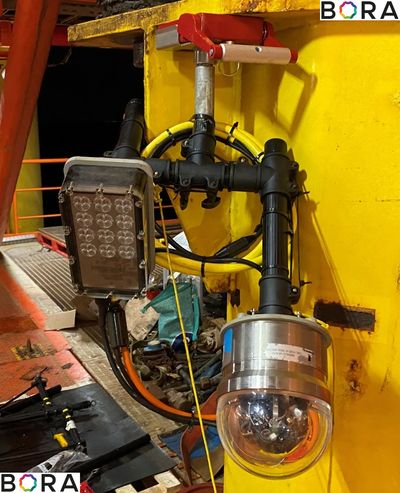

Camera Mount
Camera and lighting system with the ability to be mounted to any steel structure, above or subsea.
Arm mount setup, magnet strength, camera and light can be modified to suit application. The below configuration is fitted with OE14-222-PATZ camera, SeaLED 300 light and Miko MAM-300 magnet. Is suitable for use up to 4500msw, limiting depth factor is length of cable, which is to be requested upon purchase
Mezzanine Deck
A mezz deck designed for the optimisation of space, enabling the installation of additional equipment, through maximising the vertical space. This particular mezz deck was designed to support a davit and LDC, however, design can be customised to the client’s requirements.
Roller Box
This roller box has been designed to support and guide flexible lines such as risers, umbilical, flowlines or subsea cables as they are moved across the deck or guided over the side of a vessel or platform. Enables smooth movement, protection and even load distribution to avoid excessive stresses.
Tulip Flare Deflector
The tulip flare deflector is designed to enable the pull in of the umbilical/riser. It is to be deployed/recovered through 3-point lift using the central padeyes and bolted to the I-Tube, respective of the expected pull in angle. Enables the umbilical/riser to be hung off without obstruction.
Dimensions can be altered to suit I-Tube.
Guidepost Extension Stand
A stand designed for the secure storage of 4 off guide posts. Completed with forklift pockets for transportation and central lift point for deployment/recovery. Can be secured into our specially designed baskets.
I-Tube Wire Deflector
The deflector is designed to carry the load of the wire deflected through the required angle to enable pull in of the umbilical/riser.
Dimensions can be altered to suit I-Tube.
